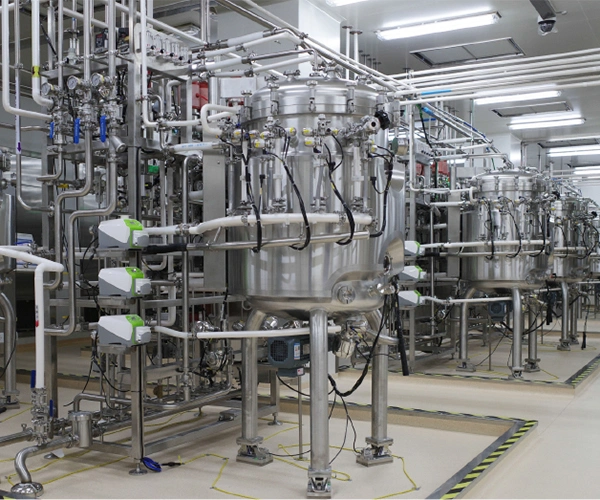

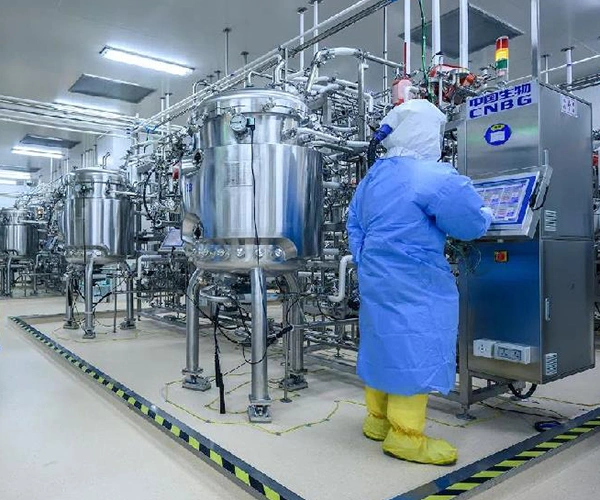

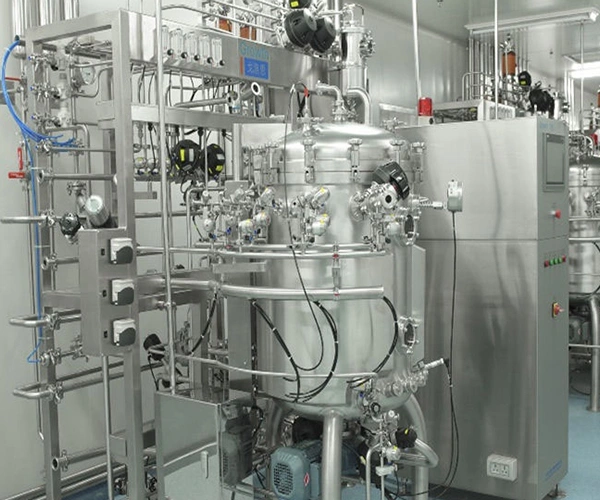

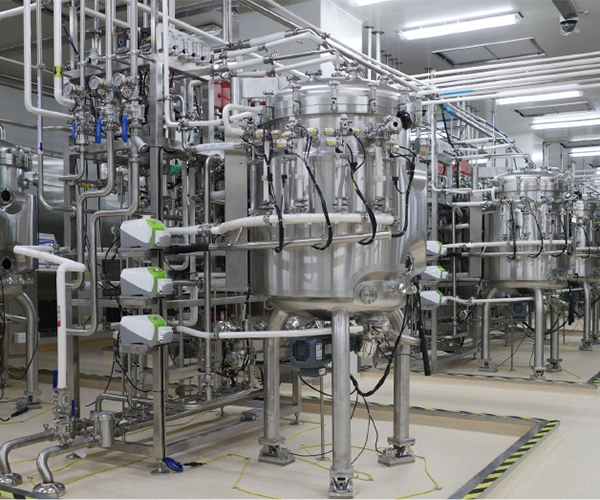

Fibra Disk Bioreactor
RITAI Fibra disk bioreactor, with a packed-bed basket impeller, is suitable for the cultivation of adherent cells such as animal cells. It adopts a modular design that can be customized according to your needs, providing functions such as online CIP (Cleaning-in-Place), SIP (Sterilization-in-Place), automatic lifting of tank covers, cold point monitoring of sterilization process, data storage, and remote monitoring.
During cultivation, this bioreactor retains cells within the carrier fibers, reducing the shear force generated by the impeller and the impact of foams from the gas distributor on the cells. This allows the cells to remain in a relatively static state, facilitating fast cell adhesion to the carrier fibers and reducing the likelihood of cell detachment. It also enables longer maintenance periods, significantly improving the yield and reducing the content of host cell DNA in the harvest solution.
| Disk carrier | Polyester fiber | |
| Stainless steel vessel | Volume | Suitable for cell culture with volume ranging between 1L and 1000L |
| Surface finish | Internal polishing 0.2-0.4μm External polishing 0.8μm | |
| Standard | ASME, PED, GB, D1/D2, ISO9001:2000 | |
| Material | 316L stainless steel (body) 304 stainless steel (jacket) | |
| Roughness of surface in contact with materials | Ra≤0.4 | |
| Design pressure | 0.3MPa | |
| Working pressure | 0.25MPa | |
| Interface | Sight glass, side glass, light glass, feeding valve assembly connection, foam sensor pocket, pressure sensor pocket, sample cock, vent bottom valve, alkali adding connection, burst discs | |
- Reaction cultivation systems for biolaboratories
- Bioreaction systems for cosmetic manufacturing companies
- Bioreaction systems for vaccine manufacturing companies
- Batch, fed-batch, or continuous perfusion cultivation of adherent cells such as animal cells and insect cells. Mainly used for the production of cell-secreted products, such as recombinant proteins and viruses.
- Pilot-scale sample preparation and large-scale production of vaccines, as well as reagent production.
Culture of Vero cell rabies vaccine, Vero cell IPV (inactivated poliovirus vaccine), MDCK cell avian influenza, BSR cell veterinary rabies vaccine, CHO cell EPO (erythropoietin), Vero cell kidney syndrome, Vero cell porcine pestivirus, Vero cell porcine diarrhea, diploid rabies vaccine.
